Quick Start Guide

Table of Contents

Click the blue arrow to expand the menu above or scroll down to begin.

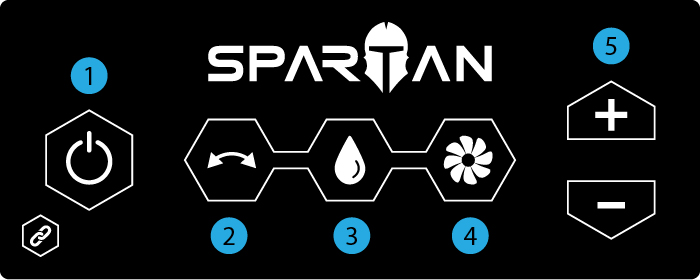

The Control Panel

1. Power On / Off

2. Oscillation

3. Cooling

4. Fan Speed

5. Setting Adjustment (+ / -)

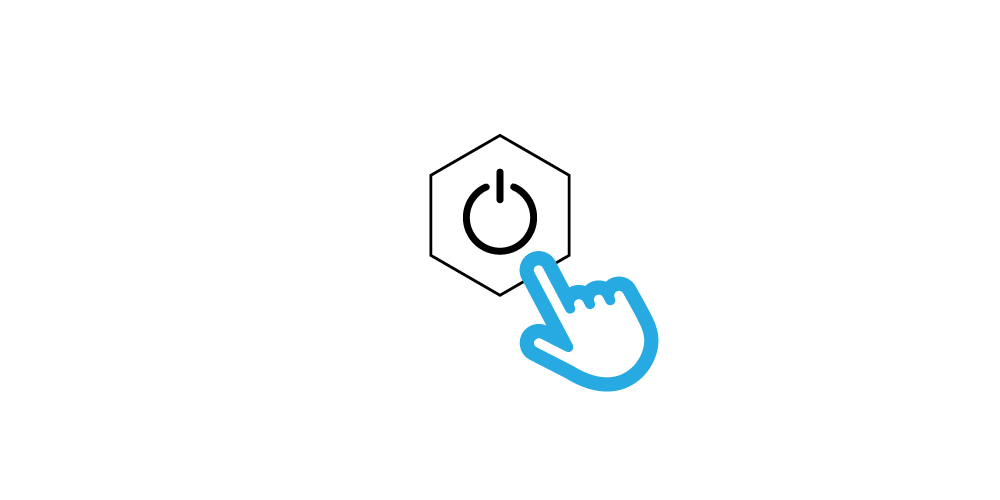

Power Spartan On/Off

To turn Spartan on or off, press and release the power button.

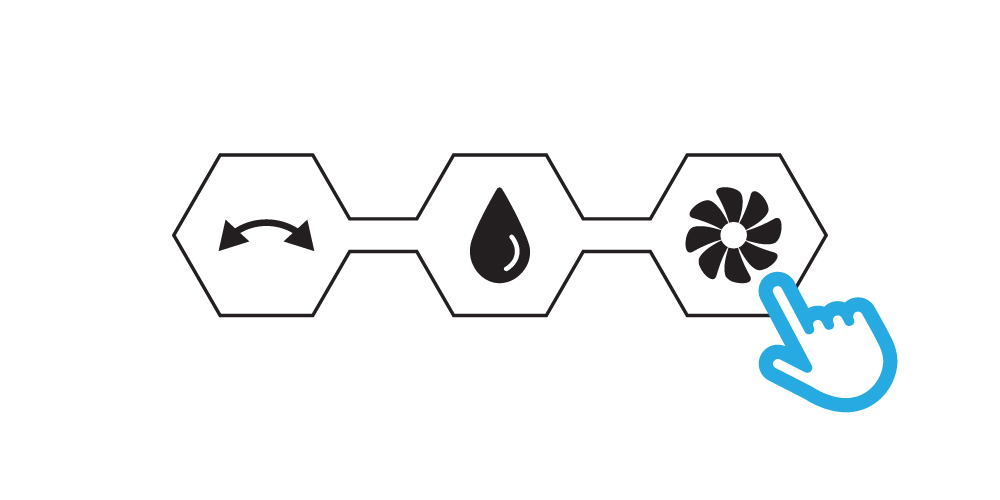

Starting The Fan

To activate the Fan, press and release the Fan Button one time. This will instantly set the fan to 50%.

Adjusting The Fan Speed

Press and release the Fan Button

Within (3) seconds, use the Setting Adjustment buttons to increase or decrease the fan speed.

Note: There are ten levels from 0% (Off) to 100%. The LED Info Bar will display the current level while adjusting the setting.

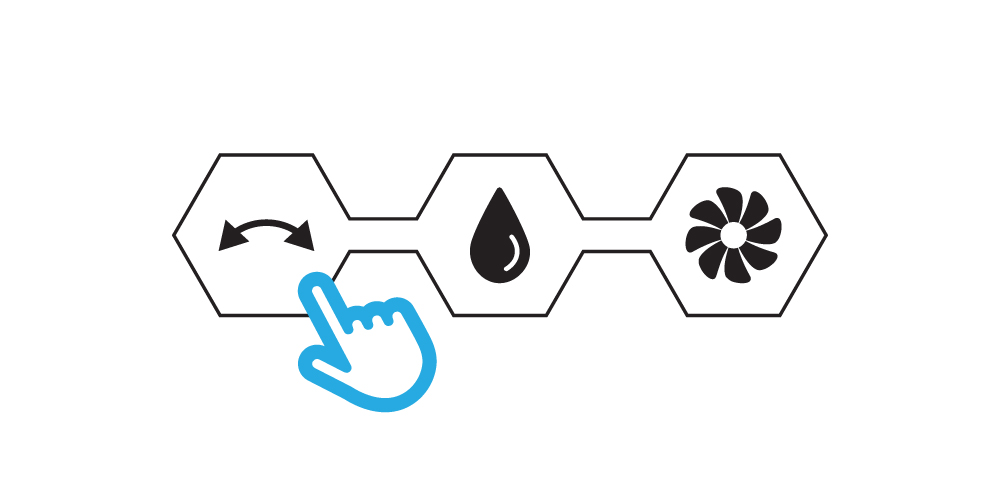

Setting Oscillation Speed

Press and release the Oscillation Button

Within (3) seconds, use the Setting Adjustment buttons to increase or decrease the oscillation speed.

Note: There are ten levels from 0% (Off) to 100%. The LED Info Bar will display the current level while adjusting the setting.

Control Airflow Direction

Step 1. Set the oscillation speed level to level one.

Step 2. When the airflow direction is in the desired position, stop the movement by setting the oscillation speed level to zero (off).

Note: Do not try to manually adjust or force the louvers left or right.

Cooling Settings

Spartan has three cooling modes for you to choose from.

The following slides explain each mode, how to determine the current mode, and how to control the Manual Mode.

Cooling Modes

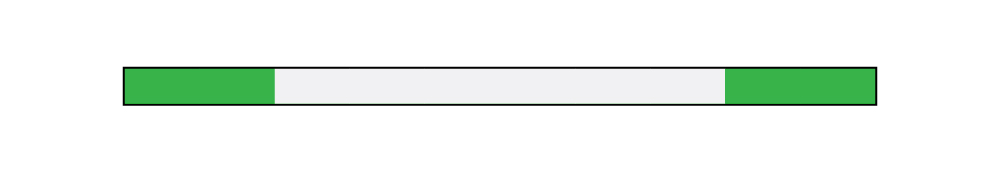

Auto Mode – When in this mode, Spartan will intelligently regulate the water usage based on the surrounding humidity and temperature to achieve maximum cooling.

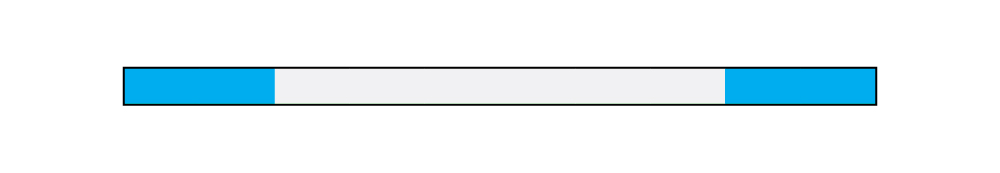

Conservation Mode – If you need to conserve water, this mode will use the least amount of water to cool the air.

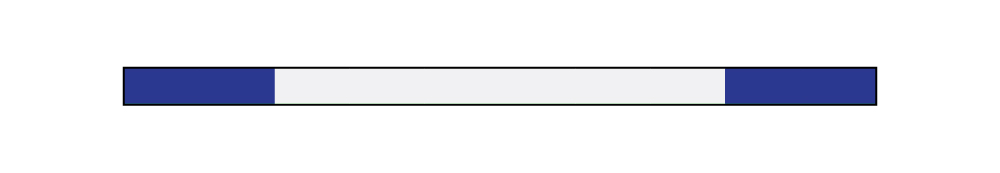

Manual Mode – Similarly to the fan speed, this mode will allow you to set the water usage over ten levels between 0% and 100%.

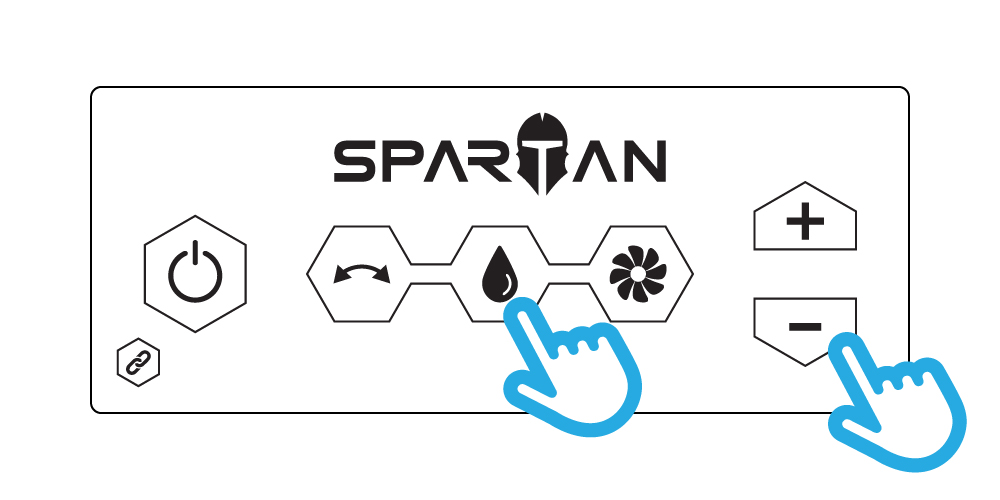

View Current Mode

To determine the current/active cooling mode, hold the mist button and ( – ) button simultaneously for five seconds.

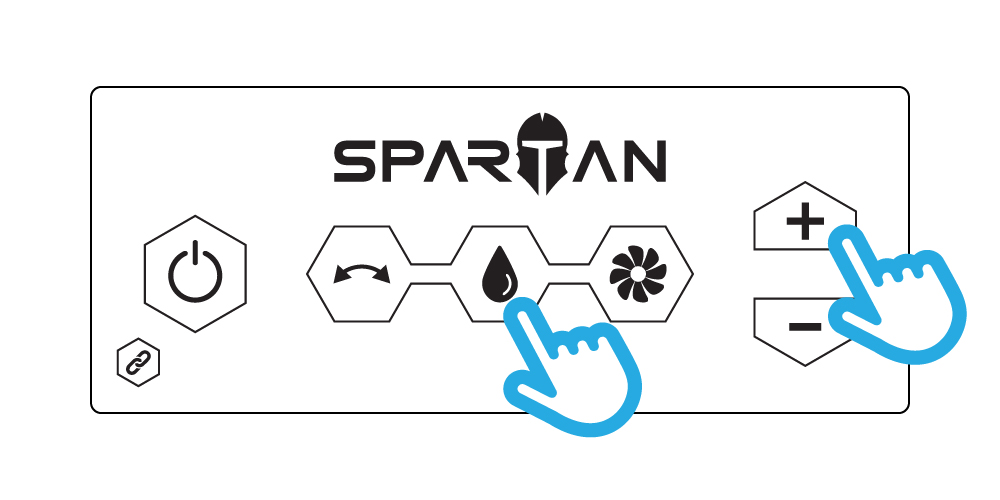

Changing Cooling Modes

Press and hold the Cool Button and ( + ) Button for 5 seconds to cycle between the three cooling modes.

The LED Info Bar will indicate the selected new mode. Instructions on how to adjust Manual Mode are on the next slide.

Adjusting Manual Mode

Press and release the Cool Button.

Within (3) seconds, use the Setting Adjustment Buttons to increase or decrease the water usage.

Note: There are ten levels from 0% (Off) to 100%. The LED Info Bar will display the current level while adjusting the setting.

Fan Calibration

Upon activation, the system will calibrate by spooling the fan up and down.

What is EcoDry?

The EcoDry feature helps keep the internal system clean by drying the evaporative media after you turn Spartan off. (Spartan still needs to remain plugged in.)

The LED Info Bar (pictured above) indicates that EcoDry is active. This process may run up to 90 minutes. Once the evaporative media is dry, Spartan will automatically turn off.
